Approved Air Gap for a Radio Active Facility

January 2, 2013

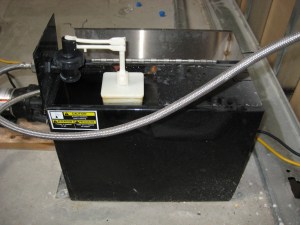

Approved Air Gap for Radio Active FacilityThis is an approved ½” Air Gap set up supplying water to radioactive equipment. When there is a demand for water; the pump on the lower left will start; water in the storage vessel will drop; the float will open the water supply line. When the demand stops the system will return to the static state shown here.
